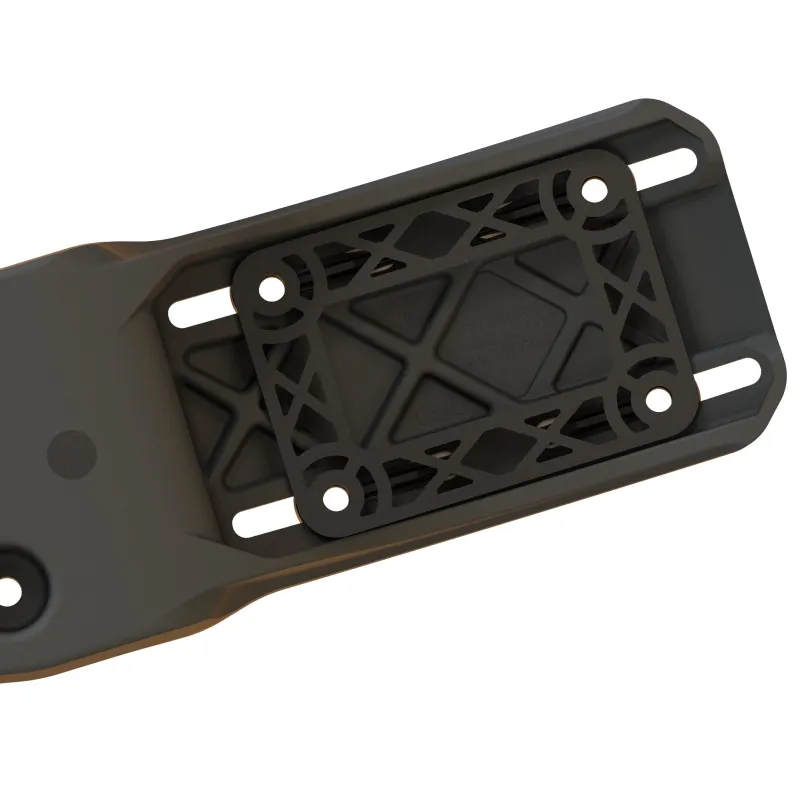

G-Bomb Glass Drop Bracket Assembly
  • G-Bomb Glass Drop Bracket Assembly
  • G-Bomb Glass Drop Bracket Assembly
  • G-Bomb Glass Drop Bracket Assembly
  • G-Bomb Glass Drop Bracket Assembly

G-Bomb Glass Drop Bracket Assembly

94,95 €
Incl. 21% VAT

Base model does not platform include screws. If selecting this, we recommend 1.25" truss head screws. These work for most platforms.

  Gratis Shirt ab 150€

Sie erhalten ein kostenloses Sickboards-T-Shirt, wenn Sie für mehr als 150 Euro bestellen.

  Kostenloses Parken

Wir haben einen eigenen Parkplatz direkt vor der Tür

  Versandkostenfrei ab 75€

Sie erhalten kostenlosen Versand nach Benelux und Deutschland, wenn Sie für mehr als 100 Euro bestellen. n

  100 Tage Widerrufsrecht

Sie können Ihr unbenutztes Produkt innerhalb von 100 Tagen zurückgeben (siehe unsere Richtlinie).

  Weltweiter Versand

Weltweiter Versand, kostenlos für Bestellungen über 300 € (Asien 600 €).

Glass Drop is the first member of G-Bomb's composite series and their most analytically intense, and engineered, bracket to date. The result is uncompromising robust performance and game changing value.

The Glass Drop has 35mm of drop combined with 30 degrees of angle adjust (15 degrees of dewedge and up to 15 degrees of wedge). The fiberglass composite material has a density less than half of aluminum! At 240 grams the Glass "Fatty" frame is 20% lighter than our aluminum alloy DD series. Or, select the "Skinny" version that weighs in at only 175 grams. The molding process allows us to strengthen the structure by putting material where traditional metal working can't. The result is a high MOI (moment of inertia) to reduce bracket stresses that delivers a very responsive ride with tight flex and tighter truck positioning than the aluminum series. The design positions the truck 11mm closer to the deck than the aluminum DD series to maximize pumping leverage, but still permits big wheels.

G-Bomb has minimized the need for shock pads by integrating robust and compliant O-rings to protect the bracket and deck interface. With the addition of 2mm of riser at the truck the composite series brackets are Paris truck compatible. A recess down the center of the deck interface accommodates heavy concave platforms. Screws and nuts have also been recessed in pockets. This adds strength to the bracket and protects the fasteners from impacts.

Heads up! The screw and nut recesses with the fatty version require a metal socket type wrench for assembly. These tools are fairly common, and the G-Key will work in a pinch. However, the bulky and cheaper plastic tools won't fit in the pockets.

Specs:

Drop: 35mm
Angle Adjust Range: 30 Degrees (+15 Wedge to -15 Dewedge)
Frame Weight: 225 grams (7.9 oz)
Material: Glass Fiber in Engineered Polymer Matrix
Color: Black
Deck Interface: Silicone Pad with Concave Compliant Recess
Truck Compatibility: Compatible with RKP and TKP trucks.

0710664036535
W-F-22-1-4

Technische Daten

Color
Black
Hardware
Brackets
